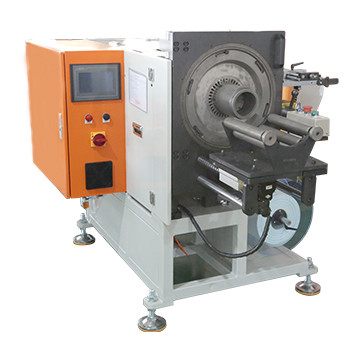

Electric Motor Stator Different Slots Insulation Paper Inserting Machine
1. The tooling is with modular design, which is convenient and easy to change the tooling. It is suitable for
medium and large frame motors with housing or not.
2. It is suitable to insert insulation paper automatically for large and medium-sized motors with housing or not.
3. The tooling changeover time is less than 30 minutes, which is suitable for motor with various kinds and small quantity.
4. The mechanical structure is mainly controlled by servo system, instead of mechanical parts transmission.
5. The tooling is with modular design.
6. It's convenient and easy to change the tooling.
(1) Main Technical Information
Model | CW300 |
Core length | 80-300mm |
Stator I.D. | 100-200mm |
Stator O.D. | ≤300mm |
Height of Edge Folded | 3-10mm |
Insulation paper's thickness | ≤0.35mm |
Efficiency | 1.2s/s |
Power Supply | 380V/50/60Hz 0.75Kw |
MOQ | 1 set of Slot Paper Insertion Machine |
Machine dimension | (L)1100*(W)910*(H)1510mm |
(2) Application
1. Suitable exclusively for large and medium-sized motors,inserting insulation paper automatically from bottom of stator slot;
2. Automatic paper feeding,edge folding and forming;
3. Characterized by low noise, fast speed, excellent forming,etc;
4. Slot number change is controlled by electric;
5. Interval slot inserting and skip slot inserting could be at option;
6. It is convenient and easy for different slot number stator production and changing tooling;
7. Especially suitable for generator,deep pump motor, three phase machine,etc.
(3) Machine Main Characteristic
It is a special design specific to different design or different sizes of slot; can finish insulation paper insertion at a time; automatic adjustment to perimeter, automatic cutting paper, automatic hemming and automatic inserting when inserting to various or different-sized slot; use servo paper inserting machine to feed paper and settle breadth; interpersonal interface sets required specific parameter; forming mould is adjustable to different sizes of slot automatically; characterized by simple operation, low noise, fast speed and high automaticity.
The equipment adopts programmable terminal, also called touched screen, that can set and display necessary information, it is easy to operate and reliable.
